Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 製品名 | 半自動ディッシュヘッドエンド研磨機 | 寸法 | 3500×1600×3050mm |
|---|---|---|---|
| 重さ | 2500 kg | 電圧 | 380V 400V 415V など 50Hz/60Hz |
| 色オプション | 青/黄色/赤/灰色 | 使用法 | 鉄板の表面を掃除し,生地除去し,鏡の表面を磨く |
| 状態 | 100%新品 | 制御システム | 半自動/CNC |
| 磨く効率 | 8~12m2/時間 | 保証 | 18か月 |
| アフターサービス | ビデオ技術サポート/オンラインサポート/海外のエンジニア | 提供する | ODM＆OEM |
| ハイライト | 3500x1600x3050mm Dished End Polishing Machine,2500 kg Semi-automatic Polishing Machine,8-12m2 per Hour Tank Head Polishing Machine |
||
製品の説明
Semi-automatic Polishing Machine for Dish Head End

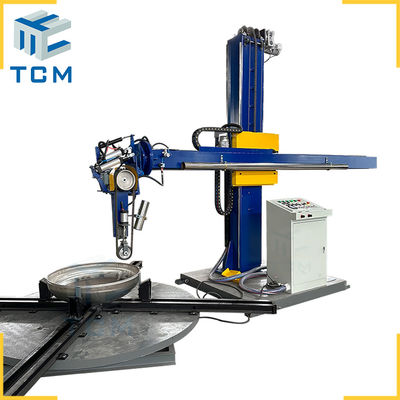

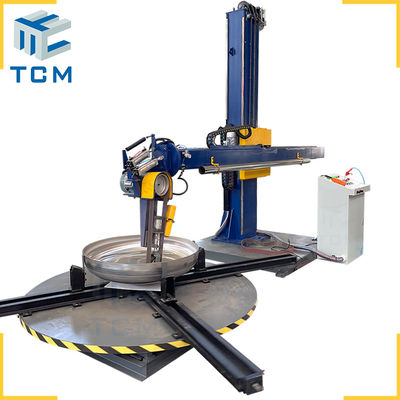

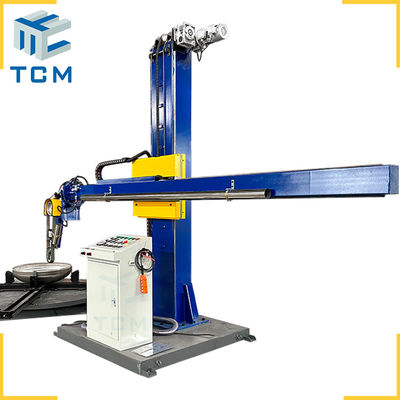

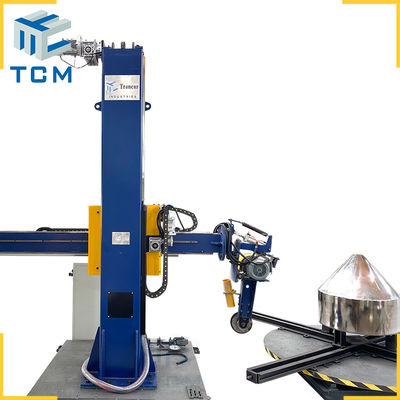

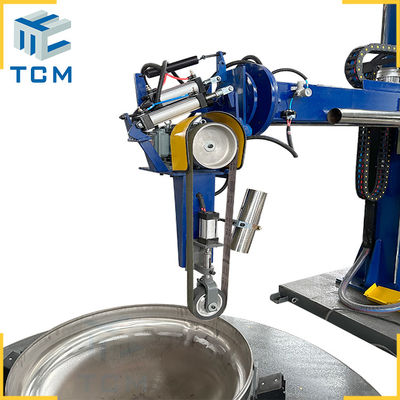

TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Available Polishing Workpiece Size | Inside & outside diameter: 450~5000mm |
| Turntable Max Loading Capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton) |
| Polishing Precision | Surface roughness(Ra) ≤0.25μm |
| Production Efficiency | 6~12 m²/hour |
| Total Dimension | Machine: 3500×1600×3080mm Column: 300×400×8mm Beam: 150×200×6mm |
| Input Total Power | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Color | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Machine Weight | 2250kg |
| Suitable Polishing Material | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Packaging and Delivery
- Plywood case + PE Film + Carton protection
- Custom packaging available based on order requirements
Trancar Automatic Polishing Machine in Client's Workshop
Contact Us
For any other queries about our polishing machines, please feel free to contact us. We will respond within 12 hours.
